Object 640 "Black Eagle"




Turret



object 640 Turret

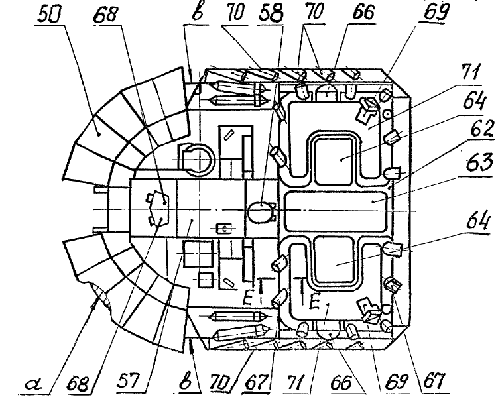

Turret(top view):


50 – Integrated ERA blocks
61 - annular groove for the installation of centering balls of the bearing unit
62 - removable armored cover
63 - hatch for installing and servicing the loading mechanism
64 – blow off panels
66 - blocks of the radar tracking station
67 - Mortars with ammunition of the complex "Drozd" or "Arena"
68 - heads of the laser detection system of the front sector
69 - the head of the indicator of the laser detection system of the rear sector
70 - mortars for launching aerosol grenades
71 - lightly armored casings (in the figure, the central non-removable part of the casing)
"A" - the front contour of the dome of the tower



object 640 Turret

The tower of the perspective tank (front view) without the crew basket and gun:


23 – turret ring
48 - front plates of the turret
50 – explosive reactive armor blocks
51 embrasure
58 - hatch for ejecting cartridge shells





object 640 Turret

Turret(side view):


23 - turret ring
46 - aft leaf of the turret
47 - side walls of the turret
48 - front plates of the turret
49 - turret roof
50 - explosive reactive armor blocks
59 - mounting lugs with through grooves
