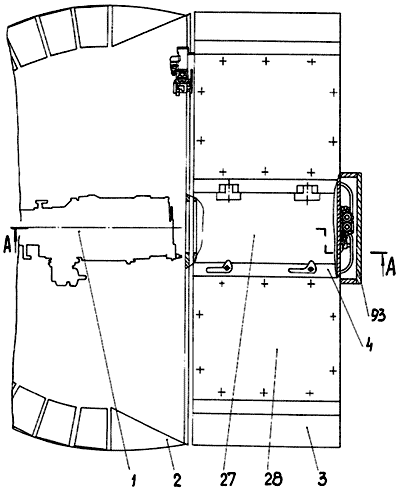

1 - gun, 2-turret, 4 - turret roof, 27 - loading hatch with cover, 28 - two hatches for directing the blast wave (blow off panels), 93 - the armored body of the drive mechanisms of the conveyor.

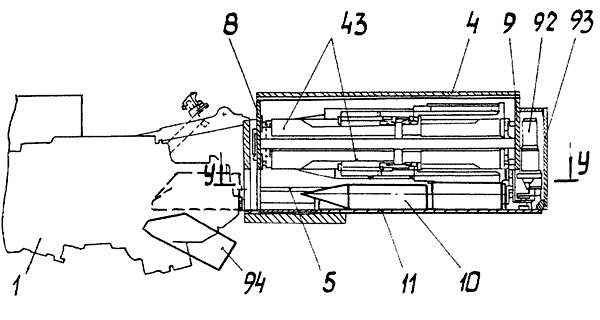

1 - gun, 4 - turret roof, 8 - front wall of the module structure
9 - rear wall of the module structure, 10 - round, 11 - receiving tray body
43 - the frame of the cassette, 92 - rammer, 93 - the armored body of the drive mechanisms, 94 - a movable guide track.

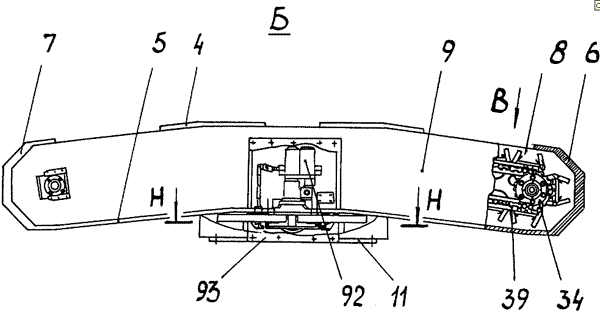

Rear view of the autoloader module:
4 - tower roof, 6-7 Side walls of the tower structure, 8 front wall of the tower structure,
9 - the back wall of the module structure, 11 - the receiving tray body, 34 - the drive sprockets, 39 - the chain, 92 - rammer, 93 - the armored body of the drive mechanisms.

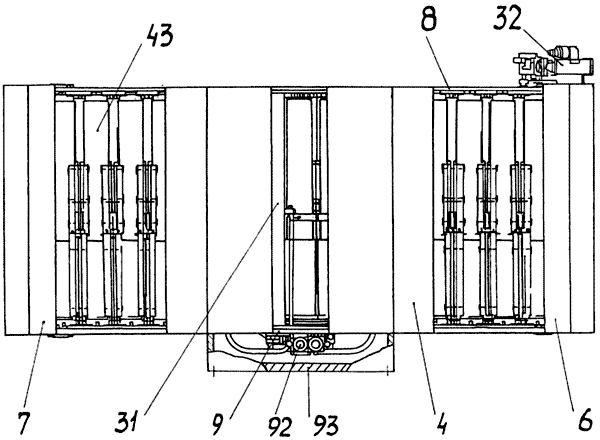

View from above:
4 - module roof, 6-7 - side walls of the module structure, 31 - beam, 32 - electric drive of the conveyor, 43 - cassette frame, 92 - body of the rammer, 93 - armored body of the drive mechanisms
